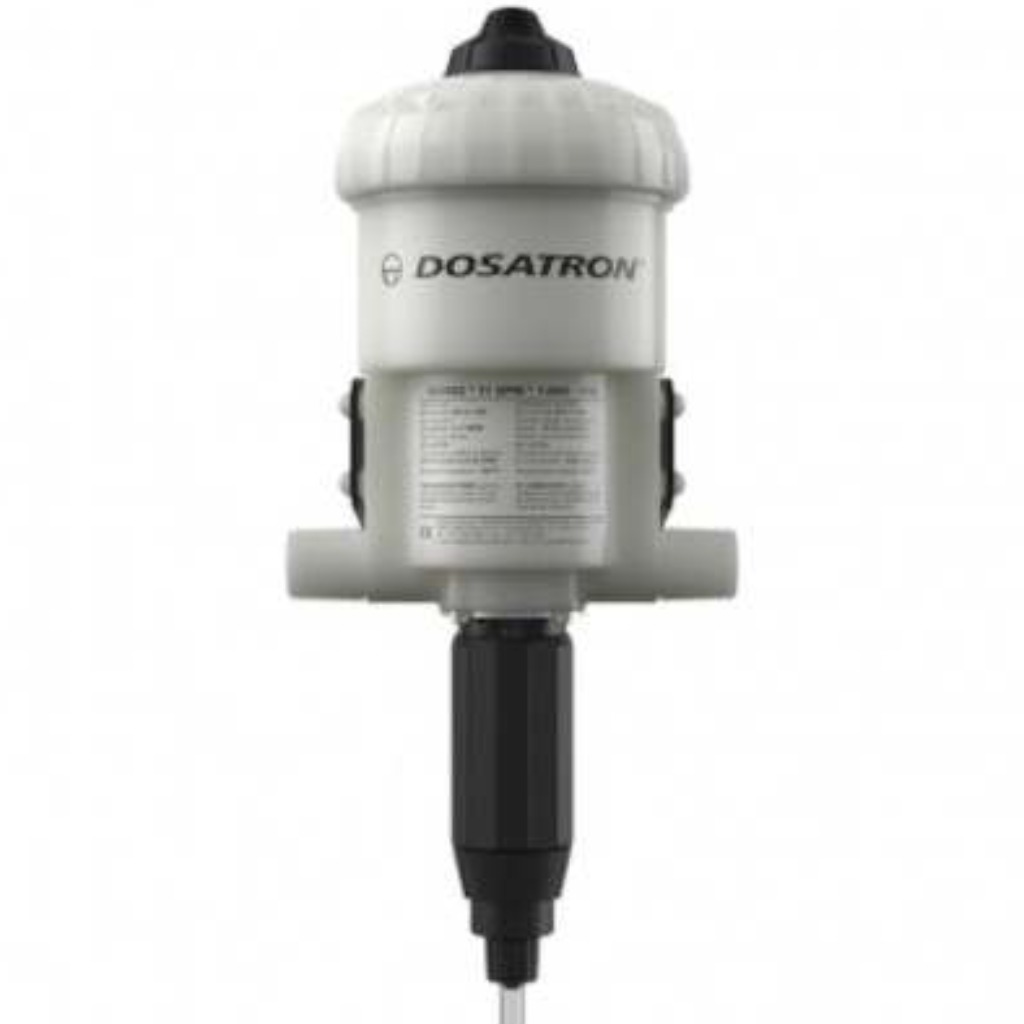

Dosatron D25RE2VFP body in PVDF 0.2% - 2.0%
Suitable for difficult dosing conditions, such as those associated with corrosive or abrasive additives. Proportional and electricity-free dosing
Proportionality dependent on water flow
High chemical resistance PVDF body
Engine protected by external injection kit (optional)
Not recommended for poorly soluble oral powders.
Features of the Dosatron D25RE2VFP PVDF 0.2% - 2.0% pump
- Injection range 0.2 - 2% [1: 500 - 1:50]
- Water flow rate range 10 l / h - 2.5 m3 / h
- Operating water pressure 0.3 - 6 bar
- Injection of concentrated additive 0.02 - 50 l / h
- Stroke volume ~ 0.45 l
- Connections NPT-BSP 3/4 '' MØ 20x27mm
